Aktualisiert Breakout Volume Quality [AGPro Series]
Breakout Volume Quality [AGPro Series]
🔷 OVERVIEW
Breakout Volume Quality is a chart-overlay indicator built to answer one specific question:
When price breaks a defended level, did that break carry real participation quality, or was it only a low-conviction move beyond the line?
Many breakout tools detect the level break itself. This script goes one layer deeper. It evaluates the breakout candle through relative volume, body efficiency, close location, distance beyond the broken level, expansion versus ATR, and the quality of the underlying support-resistance range. The output is a clean 0-100 breakout volume quality score, a visual confirmation band, a compact event label, and a retest state panel.
The goal is not to mark every possible breakout. The goal is to separate a cleaner participation-backed break from a weak level poke that deserves less visual attention.
🔹 CORE IDEA
A breakout is more useful when price does more than cross a line.
Breakout Volume Quality looks for a sequence:
1. A support or resistance reference is built from repeated pivot interaction.
2. Price closes beyond that defended level by an ATR-adjusted buffer.
3. The breakout candle is graded for relative volume participation.
4. Candle structure is checked for efficient body control and directional close quality.
5. The move is measured against ATR to understand displacement and expansion.
6. Confirmed events project a forward confirmation band.
7. The script then tracks whether the broken level produces a clean retest hold, expires, or fades back inside.
This creates a more complete event map than a simple arrow above or below a candle.
💠 UNIQUE EDGE
The edge of this script is the "volume verdict" layer.
It does not simply ask whether price broke resistance or support. It asks whether the break showed enough participation quality to deserve confirmation.
That distinction matters because visually similar breakouts can behave very differently:
- A break with elevated relative volume, strong body efficiency, and a close near the directional extreme usually communicates cleaner participation.
- A break with low relative volume, wick-heavy structure, and a weak close beyond the level may be more fragile.
- A move that breaks, confirms, and later holds the band is visually different from a move that immediately fades back inside.
Breakout Volume Quality turns those differences into a readable score and a structured chart layer.
🔶 WHAT MAKES IT DIFFERENT FROM OTHER AGPRO BREAKOUT TOOLS
This script was intentionally designed to avoid overlapping with the existing AGPro breakout family.
It is not a Donchian breakout tool.
It does not revolve around a rolling channel high or low as the main concept. The level reference comes from defended pivot interaction, and the main evaluation is the volume quality of the break.
It is not an Inside Bar breakout tool.
It does not require a parent candle compression pattern. The script can evaluate broader defended levels rather than only inside-bar structures.
It is not an Opening Range breakout tool.
There is no session opening window, no locked opening range, and no session-specific model.
It is not an ATR Envelope breakout tool.
It does not treat a dynamic volatility envelope as the breakout boundary. ATR is used for normalization, buffers, bands, and score scaling.
It is not a Break-Retest quality tool.
The retest state is included for workflow context, but the core score is assigned to the breakout candle and its participation quality. The first retest is not the central scoring event.
It is not a Failed Break or trap-reclaim tool.
Weak breaks are faded as failed confirmations, but the script does not rebuild the event into a reversal or reclaim model.
It is not a general RVOL pressure map.
Relative volume is used specifically to validate level breaks, not to classify all candles into broad pressure states.
This gives Breakout Volume Quality its own clear lane: breakout participation quality around defended levels.

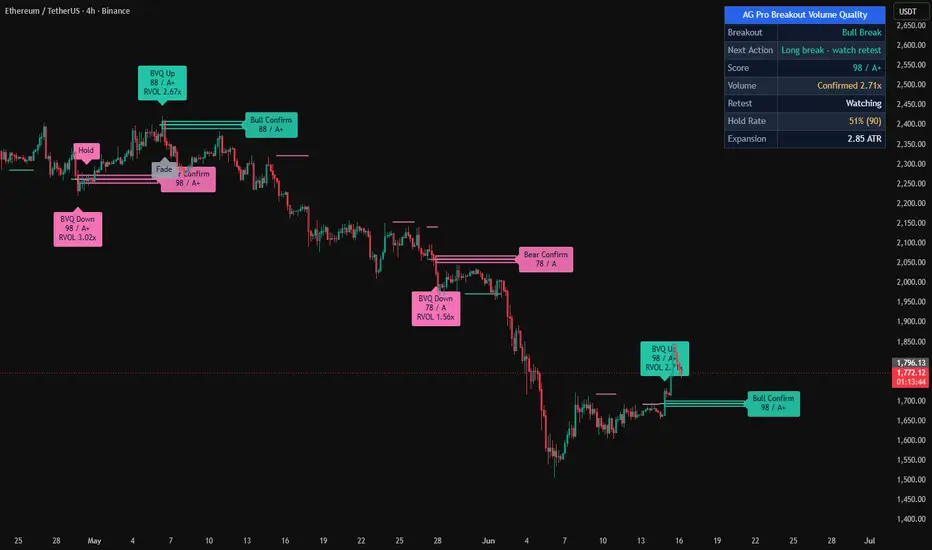

📌 VISUAL COMPONENTS
Breakout Line
The broken level is extended forward so the user can see the exact structural reference being tested.
Decision Rails
Eligible defended support and resistance references are displayed as subtle forward rails. These rails keep the chart active while price is building around a level, without turning the script into a generic support-resistance map.
Volume Build-Up Windows
Compact boxes labeled BULL SETUP or BEAR SETUP can frame areas where price is building volume pressure near an eligible breakout level before confirmation. These windows are concept-native: they show pre-breakout participation pressure, not generic support-resistance zones.
Optional Advanced Layers
RVOL approach marks, quality candle glow, and pressure trail points are available for users who want more activity on the chart, but they are disabled by default so the main public view remains easy to read.
Confirmation Band
A rectangular band is projected around the broken level. Confirmed events use stronger visual emphasis, while weak confirmations are faded so the chart keeps important context without becoming noisy.
Failed-Confirmation Fade
When price breaks a level but fails the volume, score, candle structure, or close-quality model, the event can still be shown as a softer failed confirmation band. Cleaner weak confirmations can also print WEAK UP or WEAK DOWN labels through a minimum-score filter, so the chart gains more context without labeling every low-quality break.
Retest Hold Label
After a confirmed breakout, the script watches the band for a clean hold. A retest hold is labeled only once so the chart remains controlled.
Summary Panel
The panel displays the current breakout side, volume confirmation, expansion, retest state, and score. It is designed for quick chart reading without covering the price action.
⚙️ SCORING MODEL
The score is built from six components:
Relative Volume
Measures whether current participation is meaningfully above its volume baseline.
Body Efficiency
Measures how much of the candle range is represented by the real body.
Directional Close Location
Checks whether the candle closes toward the breakout side of its own range.
Break Distance
Measures how far the close finishes beyond the broken level in ATR terms.
Expansion
Measures the breakout candle range relative to ATR.
Range Quality
Rewards levels that come from a more defined structure rather than a loose oversized range.
Together, these components produce a transparent 0-100 score and a grade-style readout.
🧭 HOW TO USE
Use the script to study whether a breakout has participation quality.
A stronger event usually has:
- A clean close beyond the level.
- Relative volume above the confirmation threshold.
- A body-dominant candle.
- A close near the breakout-side extreme.
- Meaningful ATR-normalized displacement.
- A confirmation band that later holds during a retest.
A weaker event may show:
- Low relative volume.
- A wick-heavy breakout candle.
- A close barely beyond the level.
- Fast return back inside the broken structure.
- A faded failed-confirmation label instead of a confirmed event.
The script is best used as a structured chart-reading layer. It helps organize breakout quality, but it is not a complete trading system by itself.
🔷 KEY INPUTS
Pivot Strength
Controls how support and resistance references are confirmed.
Minimum Level Touches
Requires repeated interaction before a level becomes eligible.
Level Match Tolerance ATR
Groups nearby pivots into one defended level.
Close Beyond Level ATR
Controls how decisive the break must be beyond the level.
RVOL Confirmation Threshold
Defines the participation level required for volume confirmation.
Minimum Body Efficiency
Filters weak, wick-heavy breakout bars.
Directional Close Location
Requires the candle to close toward the breakout side.
Minimum Score To Confirm
Controls how selective confirmed breakout labels should be.
Confirmation Band ATR
Sets the height of the projected band around the broken level.
Retest Watch Window
Defines how long the script watches for a clean retest hold.
Panel Location / Theme / Font Size
Allows the panel to be adapted to different chart layouts.
Label Font Size / Label Offset
Keeps labels readable and away from candle bodies.
🔶 BEST USE CASE
Breakout Volume Quality works best when the chart has visible defended levels and the user wants a cleaner way to judge whether the break had enough participation behind it.
It is especially useful for:
- Breakouts through repeated swing highs or swing lows.
- Range exits where volume quality matters.
- Comparing strong break candles against weak level pokes.
- Reviewing whether a breakout level later behaves as a confirmation band.
- Keeping weak break attempts visible without giving them the same visual weight as confirmed events.
The script is intentionally restrained: no oversized dashboard, no heavy channel system, no session dependency, and no unnecessary signal spam. The chart stays focused on the level, the break, the volume verdict, and the retest state.
🔹 ALERTS
The script includes alert conditions for:
- Bullish breakout volume confirmation.
- Bearish breakout volume confirmation.
- Breakout failed volume confirmation.
- Breakout retest hold.
- Breakout failed back inside.
These alerts are event prompts for chart review and workflow organization.
💎 DESIGN PHILOSOPHY
Breakout Volume Quality is built to feel clean, premium, and practical on a public TradingView chart.
The visual hierarchy is deliberate:
- Confirmed breaks are visible but not loud.
- Cleaner weak confirmations are faded and labeled through a score filter, while low-quality weak breaks stay visually softer.
- Decision rails keep active levels visible between major events.
- Labeled setup windows explain where pre-breakout volume pressure is forming.
- Optional activity layers are available, but the default chart does not rely on unlabeled dots.
- Bands are long enough to make the level meaningful.
- Retest labels appear only when the state actually changes.
- The panel stays compact and focused on the fields that matter.
The result is a breakout tool that is easy to understand at first glance, but still has enough structure underneath to support serious review.
